Depth Gauge Watches: The Most Complex Tool for Divers

If you’re a regular here at The Horophile, you know we have a deep appreciation for the mechanical marvels that are dive watches. We’ve discussed everything from the legendary history of the Submariner and Fifty Fathoms to the incredible pressure resistance of modern saturation beasts. But today, we’re diving deeper—literally and mechanically—to explore what I consider the most intellectually fascinating and technically complex category of dive watches: the mechanical depth gauge watch.

For most divers, a console computer is the go-to for critical depth information. It’s digital, incredibly accurate, and packed with data. So, why would anyone need a mechanical watch with an integrated depth gauge? The answer isn’t about necessity; it’s about horological artistry, a backup born from pure engineering genius, and the pursuit of a self-contained instrument for the true purist.

A standard dive watch tells you how long you’ve been submerged. This is crucial for managing your air supply and avoiding decompression sickness. But it doesn’t tell you where you are in the water column. You need to cross-reference your elapsed time with your remembered maximum depth to stay within your dive plan. A depth gauge watch removes the guesswork and the memory load, providing a real-time, analog readout of your current depth on your wrist. It’s the difference between having a timer and having a true navigation instrument.

This is where the magic happens. Unlike an electronic sensor, a mechanical depth gauge must translate a physical force—water pressure—into a readable measurement without any batteries or circuits. Watchmakers have devised several breathtakingly clever solutions to this problem, each a testament to their innovative spirit.

. The Capillary System: Elegant Simplicity

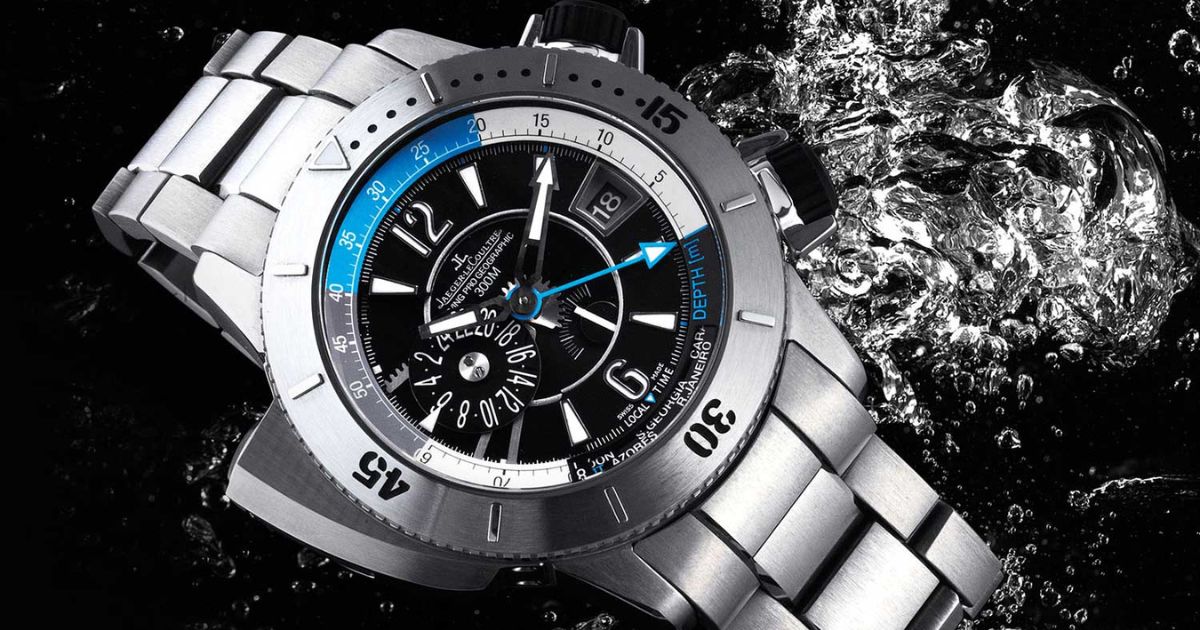

The most direct method, famously used by Jaeger-LeCoultre in their legendary Polaris and the modern Master Compressor Diving Pro Geographic, is the capillary tube.

• The Mechanism: A small channel is etched onto the underside of the crystal or a dedicated sapphire disc, filled with air and a colored liquid (often a mix of alcohol and dye). This channel is open to the water via a barely perceptible hole, usually at the 6 o’clock position.

• The Principle: As you descend, water pressure forces the liquid further along the capillary tube. The depth is read where the meniscus (the curved surface of the liquid) aligns with a scale printed on the dial or crystal.

• The Genius & The Compromise: Its beauty is in its straightforward, passive operation. However, it has limitations. Bubbles can form, and the system is typically calibrated for a specific water density (fresh or saltwater). Furthermore, the scale is often limited to a practical range, like 20 or 30 meters, as the tube would become impractically long for greater depths. Despite this, its visual clarity and elegant engineering are undeniable.

2. The Bourdon Tube System: The Heavyweight Champion

If the capillary is a scalpel, the Bourdon tube is a sledgehammer. This is the system used in the iconic IWC Aquatimer Deep Three and the Ocean2000 by IWC for the German Navy. It’s built for serious depth.

• The Mechanism: A hollow, curved metal tube (the Bourdon tube) is connected to the movement. This tube is sealed at one end and open to seawater at the other.

• The Principle: As external pressure increases, the curved Bourdon tube, resisting the pressure, attempts to straighten itself. This microscopic movement is mechanically amplified through a series of levers and gears, which in turn drives a dedicated depth hand on the dial.

• The Genius & The Compromise: The Bourdon tube is incredibly robust and can be calibrated for much greater depths than a capillary, often up to 50 or 100 meters on a watch. The reading is a classic analog hand, easy to read at a glance. The complexity, however, is immense. Integrating a pressure-sensitive tube, a gear train, and a hand-setting mechanism for the depth gauge—all while maintaining water resistance—is a horological nightmare that only the most skilled manufactures dare to tackle.

3. The Diaphragm and Differential System: The Modern Marvel

This is perhaps the most sophisticated and “watch-like” integration of the concept. Blancpain showcased this with its X Fathoms, a watch that is a true instrument panel for divers.

• The Mechanism: It uses a pressure-sensitive diaphragm. However, instead of directly driving a hand, the system often employs a differential gear, similar to what’s used in a car’s transmission or a tourbillon cage, to measure the difference in movement between two inputs.

• The Principle: One input comes from the diaphragm, which deflects under pressure. The other input comes from the watch’s going train (the power from the mainspring). The differential gear calculates the difference between these two inputs and translates it into the rotation of the depth hand. The X Fathoms takes it further, featuring both a 0-15m scale for high precision in shallow water and a second hand that records the maximum depth reached during the dive.

• The Genius & The Compromise: This method allows for incredible precision, a wide measurement range (the X Fathoms goes to 90 meters), and the integration of complex functions like a retrograde depth hand and a mechanical depth memory. The compromise is an astronomical level of complexity in design, assembly, and calibration, resulting in a timepiece that is thick, heavy, and reserved for the most dedicated connoisseurs and technical divers.

For the modern collector who may never venture beyond a swimming pool, the appeal of a mechanical depth gauge watch is multifaceted.

• Horological Art: These watches are moving sculptures that demonstrate physics in action. Watching a Bourdon tube’s mechanism or a retrograde depth hand operate is as captivating as observing a minute repeater’s hammers strike.

• A Story to Tell: Each system has its own history, its own champions, and its own engineering philosophy. Owning one is like owning a piece of problem-solving history.

• The Ultimate Expression of a “Tool Watch”: It represents the pinnacle of the tool watch ethos—a self-sufficient machine designed for a specific, demanding profession, refined to a level of high art.

While a digital computer may be the practical choice for a working diver, the mechanical depth gauge watch stands as a monument to human ingenuity. It answers a simple question—”How deep am I?”—with a solution of breathtaking mechanical complexity. From the elegant simplicity of the capillary to the brute-force intelligence of the Bourdon tube and the computational brilliance of the differential system, these watches are not just timekeepers; they are wearable engines of measurement.

They remind us that in the quest for information, there is a place for poetry in motion. For the serious collector of dive watches, understanding and appreciating these masterpieces is essential. They are, without a doubt, the most complex tools ever crafted for a diver’s wrist.
